UPHFT series heat (flow) sensor is a direct reading sensor used for thermal measurement, which can measure the instantaneous heat flow value and the absolute temperature value of the measuring point in real time
  Size series: φ 3.2*7   φ 2.5 * 4, small diameter has little influence on the surface profile of the model
  Response time ＜ 50ms
  Sensitivity: ＞ 30uV/(kW/m ²）
  Built in T-type thermocouple to measure the temperature of the measured point at the same time
  The extension cable is customized according to customer needs
  Continuous operating temperature ≤ 300 ° C

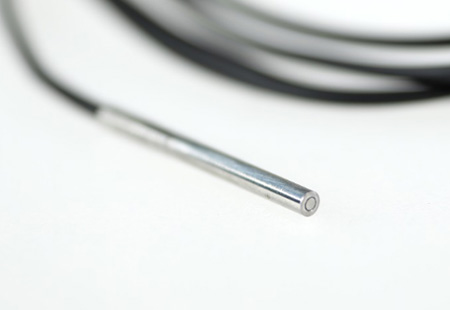

Coaxial thermocouple is a heat flow sensor developed based on the heat conduction theory of surface temperature measurement, which is used for aerodynamic heat measurement in shock tunnel, explosion heat flow measurement, engine test, etc
  Sensor diameter: 2.0mm, 1.5mm
  Insulation thickness:<5-8 μ m
  Measurement accuracy:<7%
  Heat flow response time:<10 μ s
  Heat flow measurement range: 10kw/m ²- 10 Mw/m ²
  Air flash temperature:>10000 ℃
  Temperature rise of sensor surface:<500 ℃

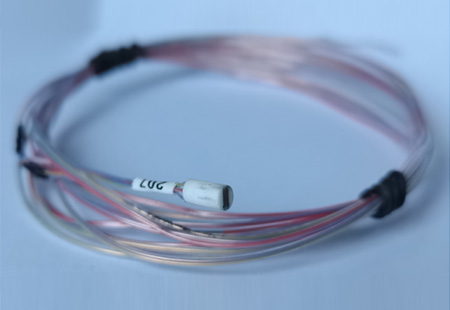

This product is a specially packaged number of customized thermocouples, which are used in special installation occasions to measure temperature
  Thermocouple type: T/N/K/J/E
  Customized materials resist thermal shock without cracking
  Reliable connection of 2pin quick plug (socket)

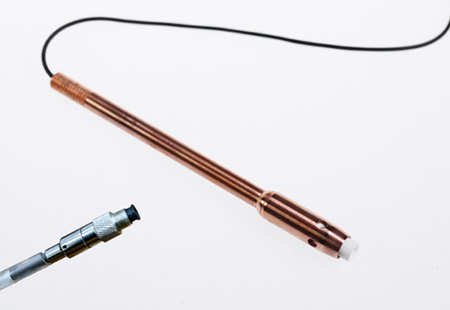

Plug calorimeter is a heat flow sensor commonly used in thermal structure test, which has the characteristics of simple structure and small size
  Response time 0.2 s
  Range 3MW/m ²
  Overall dimension series φ 3*9； φ 4*9； φ 6*9
  The extension cable is customized according to the needs
